Tria SP100A

Modular, Scalable System with high customization value

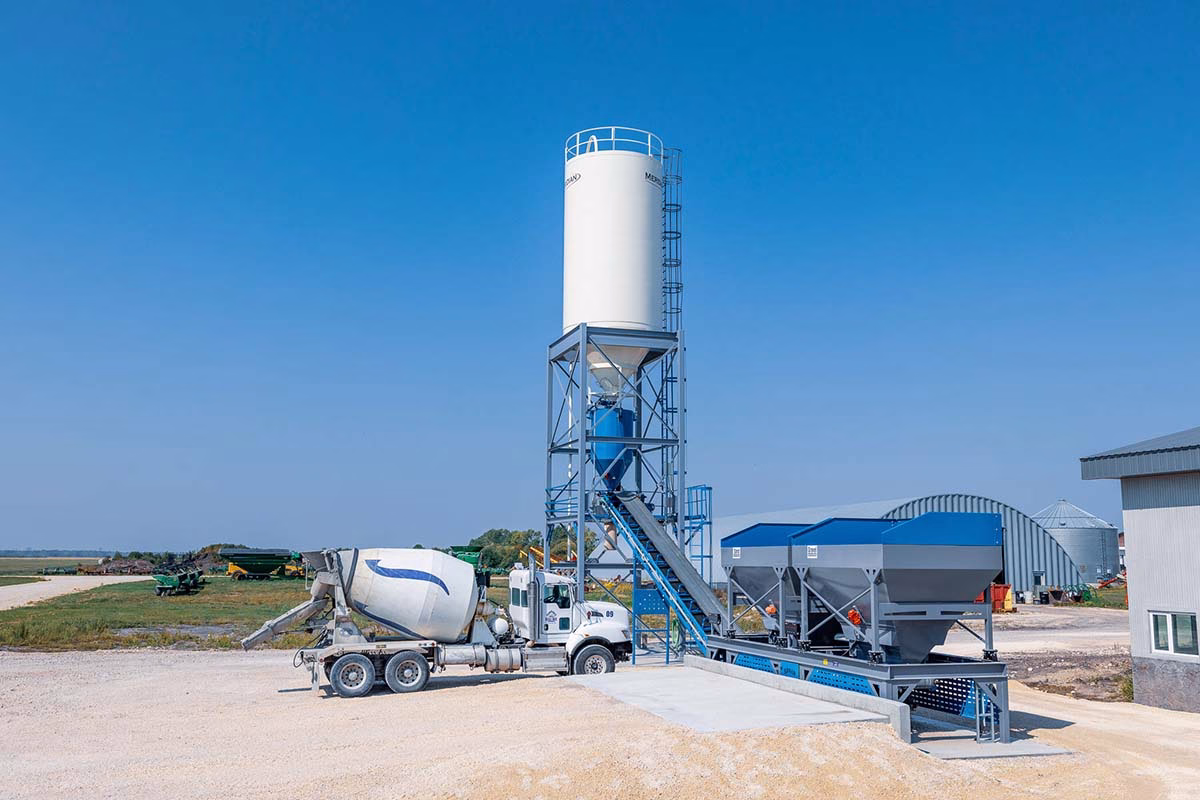

The TRIA SP100A stationary concrete batch plant is designed for producers requiring dependable high-volume concrete production with long-term operational durability and scalable output capability.

Current Model Year

2026

Stock / SKU #

1234567

Technical Specifications

Specification

Value / Detail

Source / Notes

Capacity (YPH or m³/hr)

140-200 YPH

Number of Aggregate Hoppers

2-Compartment stationary design

Aggregate Hopper Capacity (each)

12 Cubic yards per hopper

Aggregate Batcher Gates

Independent conveyor-fed aggregate system

Transfer Belt Conveyor (width)

36 inches

Feed Conveyor (width)

24 inches

Deep Troughing Idler Angle

35 degrees

Cement Feeder Type & Size

Powder bin discharge with 10” butterfly discharge system

Cement Silo Capacity (BBL / cu ft)

250 BBL/922 cu ft

Water Meter Size

2 inch stock with 3 inch option

Electrical Service

Customer configurable industrial electrical service

Electric Motor (main conveyor)

10 HP

Davis

Electric Motor (vibrator)

1/3 HP

Davis

Electric Motor (hydraulic pump)

2 HP

Davis

Electric Motor (optional Augers)

25-30 HP

Davis

Axle Configuration

Stationary plant – no axle

Control System

Batchmate, Command Alkon, MPAQ, Rice Lake compatible / Customer-specified systems

Load Cells (quantity & rating)

4 load cells (3k each)

Overall Weight

Approx. 57,032 lbs (weight will vary based on customer design needs)

Overall Dimensions (L x W x H)

Dimensions will Vary based on customer needs

Transport Method

Modular stationary installation / shipped in sections

DOT Compliant?

N/A Stationary installation

Construction Style

Heavy-duty welded structural fabrication

Aggregate conveyor system

Independent 26-inch conveyor feeds into main transfer conveyor

Aggregate Bin Construction

Welded inside and outside seams

Loader integration

Front-end loader optimized loading design

Key Features

High-capacity stationary concrete batching system designed for continuous production

140-200 YPH production capability for demanding infrastructure and industrial projects

Heavy-duty welded steel construction engineered for long-term operational durability

Dual-Compartment aggregate hopper system with high-volume material handling efficiency

Integrated conveyor feed system for consistent aggregate transfer and batching accuracy

Configurable automation and BatchMate-compatible control systems available

Modular plant layout designed for scalable expansion and site-specific customization

Build for harsh operating environments with simplified maintenance and service access

Target Customer Profile

Age range 35-60, Predominantly Male, Mid-to-high business purchasing authority, Canada, Northern US, Remote industrial regions, Trades, engineering, operations, construction management, B2B/Industrial Purchasing, Mid-size contractor to large industrial operator, Practical ROI focused, reliability driven.

Primary Buyer Type: Ready-mix producers, industrial concrete suppliers, infrastructure contractors, precast operations

Operation Scale: Mid-size to large-scale permanent concrete production operations

Geographic Context: Urban infrastructure, industrial facilities, remote industrial developments, commercial production yards

Pain Point Addressed: Provides reliable and scalable in-house high-volume concrete production while reducing dependence on third-party supply chains and improving operational control.
